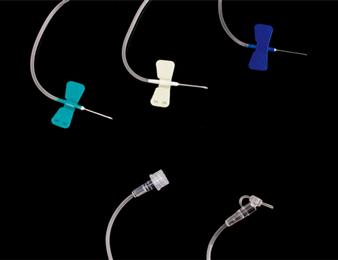

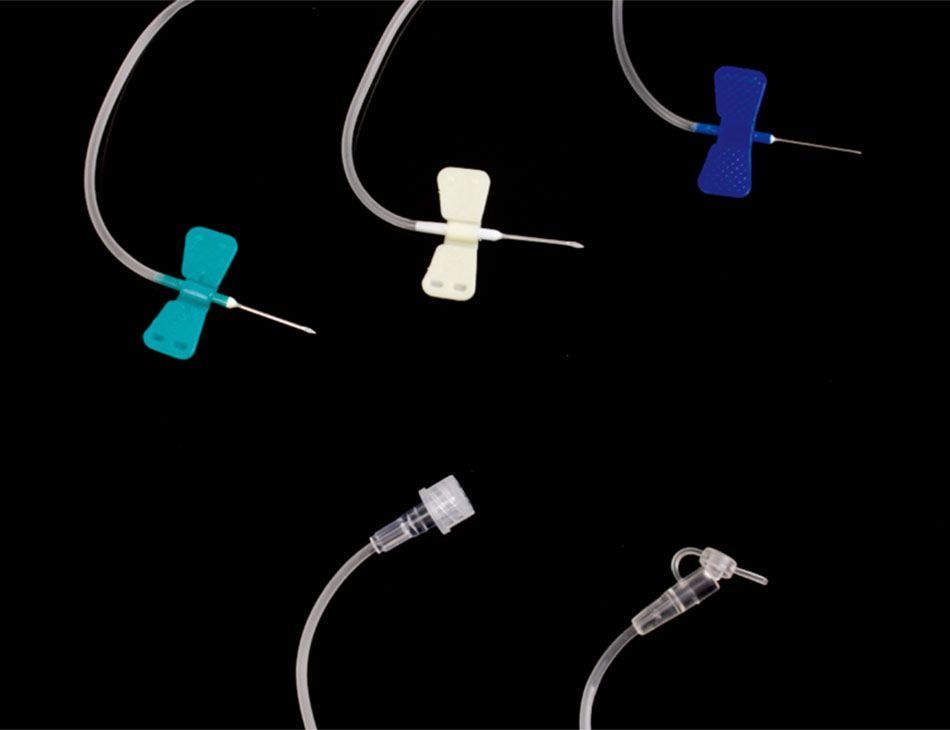

Disposable Scalp Vein Sets

• Delicately-designed needle-point with features of shapness, smooth puncture, less damage.
• To the tissue, less painful feeling to the patient.
• With soft wings for the convenience of fixation.
• With large I.D and high flow.
• Size distinguished by the wing's color for the clear recongnition.
• Soft pulling after the infusion so that the needle can be pulled into the protective.
• Sheath so as to prevent the medical care persons hurt by the used needle.
• Needle-hub types: PVC ub and ABS hub.
• Wing types: Single-wing ABS and double-wing PVC.
• Packing types: PE bag or paper-plastic bag.

REF

OD(mm)

Gauze

Color

Needle pipe length

Bevel Angle

GCH020101

0.40

27G

Grey

3/4”

Short bevel

GCH020102

0.45

26G

Brown

3/4”

Short bevel

GCH020103

0.50

25G

Orange

3/4”

Short bevel

GCH020104

0.55

24G

Purple

3/4”

Short bevel

GCH020105

0.60

23G

Blue

3/4”

Short bevel

GCH020106

0.70

22G

Black

3/4”

Short bevel

GCH020107

0.80

21G

Green

3/4”

Short bevel

GCH020108

0.90

20G

Yellow

3/4”

Short bevel

GCH020109

1.10

19G

Cream

3/4”

Short bevel

GCH020110

1.20

18G

Pink

3/4”

Short bevel
